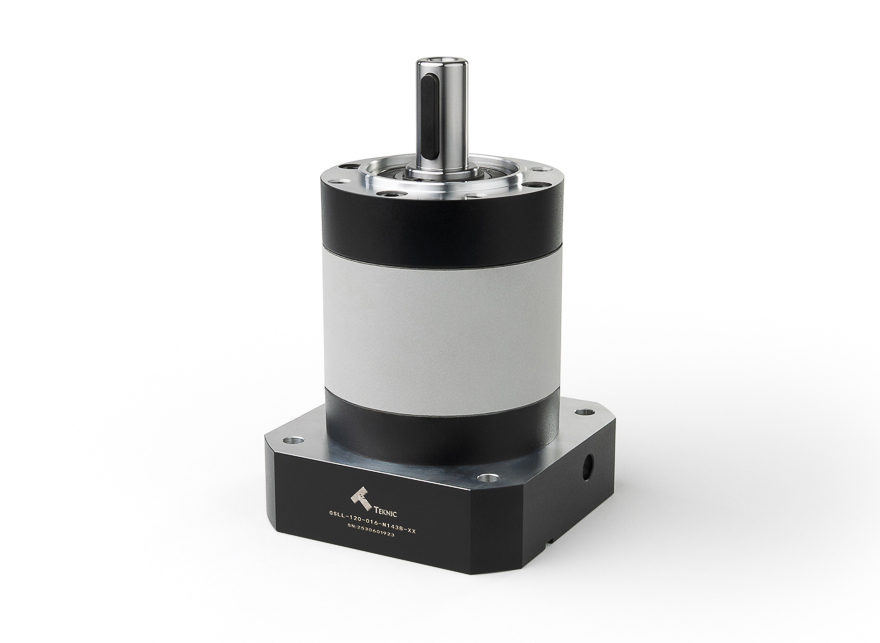

NEMA 56 Planetary Gearbox
Part Number:

GSLL-120-016-N056A-XX

Gearbox Options
Note: Changing any gearbox options will alter your part number
Find a custom gearbox solution
Click "Configure" below to create a Built-to-Order gearbox from the options available from Teknic.

If these options don't meet your application needs and you're looking for a custom gearbox solution, please complete the Gearbox Form linked below, and one of our applications engineers will contact you shortly.
Purchase
Gearbox Quantity Pricing
Qty:1-910-4950-99100-199200+
$879$849$823$785 CONTACT
Specifications
Output Shaft Diameter 0.98 in (25 mm)
Weight 19.4 lb (8.80 kg)
Efficiency94%
Backlash12 arc-min
Nominal Torque Output 36,819 oz-in (260 N-m)
Maximum Acceleration Torque1 66,274 oz-in (468 N-m)
E-stop Torque 110,457 oz-in (780 N-m)
Nominal Input Speed3000 RPM
Maximum Input Speed6000 RPM
Gearbox Inertia 5.03 oz-in2 (0.92 kg-cm2)
Maximum Radial Load 416 lbf (1850 N)
Maximum Axial Load 629 lbf (2800 N)
Environmental RatingIP54
Ambient Operating Temperature-15°C to 90°C
Minimum Service Life20000 hours
Audible Noise60 dB
Grease TypeSynthetic grease
Country of OriginChina
Warranty1 year

1 Ensure the gearbox's maximum acceleration torque meets or exceeds your motor's peak torque rating, or torque limit the motor accordingly.
