Performance, Protection, Flexibility, Connectivity

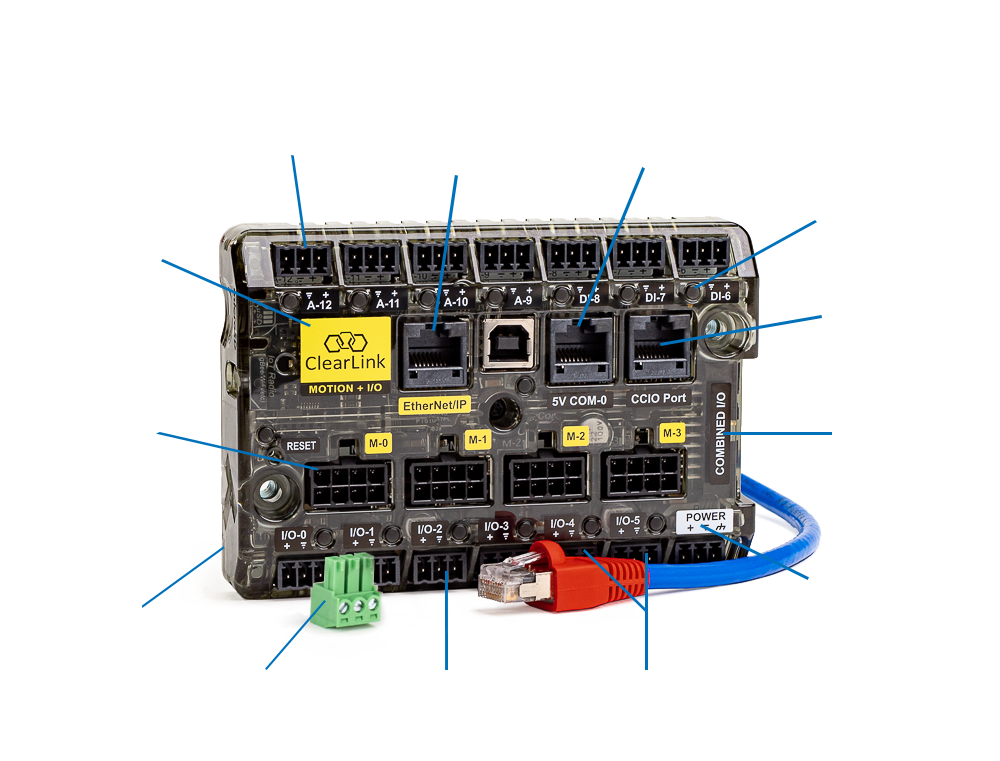

ClearCore features
EtherNet/IP: 10Base-T/100Base-TX Ethernet EtherNet/IP Explicit & Implicit Messaging Adapter
Serial Port: RS-232 communications with hardware flow control. Has an activity LED and 5 volt power pin for the remote device if needed
See the I/O state and exception status at a glance on dedicated LEDs. Faster software development and easier troubleshooting.
Add up to 64 more digital I/O points in 8-point increments by daisy-chaining CCIO-8 expansion modules.
All I/O points are also available on a header connector
All I/O points are compatible with 24V industrial sensors and actuators. Power with 24 VDC.
Directly control in-line brakes and other high current outputs up to 750 mA RMS
Heavy duty digital outputs can directly drive resistive or inductive loads up to 9 watts, so you can drive contactors, pneumatic or liquid valves, guard locks, brakes, LED lamps, etc. without separate relays.
Every I/O point has a separate terminal block, with its own power and ground pins. This eliminates running multiple wires to one connector terminal or creating specially made breakout boards.
Rugged polycarbonate and aluminum case
Small: 3.5" x 5" x 1"
Control up to 4 axes of stepper and/or servo motors. ClearPath-SD and -MC* integrated servos are "plug and play" using standard cables. Note: Only certain operational modes in the MC series are recommended when using ClearLink (see below for more information).
Multiple Mounting Methods: Panel mount and DIN Rail option to mount in-panel or on machine.
Protected against overloads (voltage, current and thermal), ESD, inductive flyback, reversed power polarity, and most wiring errors.
1Multiple Mounting Methods: Panel mount and DIN Rail option to mount in-panel or on machine.
2Protected against overloads (voltage, current and thermal), ESD, inductive flyback, reversed power polarity, and most wiring errors.
3EtherNet/IP: 10Base-T/100Base-TX Ethernet EtherNet/IP Explicit & Implicit Messaging Adapter.
4Serial Port: RS-232 communications with hardware flow control. Has an activity LED and 5 volt power pin for the remote device if needed.
5See the I/O state and exception status at a glance on dedicated LEDs. Faster software development and easier troubleshooting.
6Add up to 64 more digital I/O points in 8-point increments by daisy-chaining CCIO-8 expansion modules.
7All I/O points are also available on a header connector.
8All I/O points are compatible with 24V industrial sensors and actuators. Power with 24 VDC.
9Directly control in-line brakes and other high current outputs up to 750 mA RMS.
10Heavy duty digital outputs can directly drive resistive or inductive loads up to 9 watts, so you can drive contactors, pneumatic or liquid valves, guard locks, brakes, LED lamps, etc. without separate relays.
11Every I/O point has a separate terminal block, with its own power and ground pins. This eliminates running multiple wires to one connector terminal or creating specially made breakout boards.
12Rugged polycarbonate and aluminum case; Small: 3.5" x 5" x 1".
13Control up to 4 axes of stepper and/or servo motors. ClearPath-SD and -MC* integrated servos are "plug and play" using standard cables. Note: Only certain operational modes in the MC series are recommended when using ClearLink (see below for more information).

Integrate Motion and I/O with any EtherNet/IP System

ClearCore standalone schematic

Control Stepper Motors and/or Digital Servos...

...Including ClearPath SD- and MC-Series Integrated Servos

ClearPath-SD
Position & Velocity
With ClearLink's step & direction outputs, you can control ClearPath-SD servo systems to achieve high performance in a low-cost, compact package. This combination will provide complete control over the motion profile including position, velocity, and acceleration.
ClearPath-SD is also an easy upgrade over stepper motors giving you smoother, quieter, and more precise closed-loop motion.
watch video
ClearPath-MC
Torque Control
ClearLink combined with ClearPath-MC is the easiest way to achieve high-performance torque control for applications using an Ethernet/IP master PLC that have no precise positioning requirements (e.g. web tensioning applications).
The MC motors can be used in one of two operational modes with the ClearLink controller for torque control. Follow Digital Torque Command allows you to control the torque output of the motor (no control over position or velocity) while the Follow Digital Velocity Command w/ Variable Torque mode allows you to control the active torque limit and the commanded velocity at any given time.
watch video
Use ClearLink with ClearPath-SD and -MC series integrated servos
Control 4 axes of motion with each ClearLink

Flexible, software-configurable I/O

  • 13 software-configurable I/O points. Add up to 64 more digital inputs/outputs with 8-point I/O expansion modules (CCIO-8).
  • Four axes of motion control. Compatible with step & direction servo or stepper drives. Plug & play with ClearPath servos.
  • Separate ground and power pins for all I/O points. Easy point-to-point wiring.
  • Dedicated LED for every I/O point indicates state and exception status.
  • Encoder input (differential quadrature) using optional Encoder Input Adapter
ClearLink
3-year warranty

Try ClearLink risk-free for 3 months.
Full refund if you're not 100% impressed!
