Integrated Servo With Full Software Control

ClearPath-SC motors
High-Performance Servo Motors with Powerful Built-In Controller
  • Tightly coordinate up to 48 axes (or more)
  • Intuitive and modern. No cryptic two-letter commands
  • Rich C++ (and .NET) motion class library—simple, yet powerful
  • Compatible with Windows® and Linux®
  • Features for event-driven and multi-threaded designs
  • IP67 sealing option protects against extreme environments
PRICES START AT ONLY  $309
BUY ONLINE
SHIPS IN 3 DAYS

Ease-of-Performance

ClearPath-SC blends a sophisticated, networked motion controller into the already compact ClearPath all-in-one servo motor system. There is no easier way to get high-performance motion control.

Two models are available:

  The SCSK model is a servo system for the price of a stepper motor/drive system, but 2-3 times the power;

  The SCHP model is more than 4 times the power of the SK model, and although a modest price premium over the SK, compared to other similar power servos, the HP is about 50% lower cost and a compact, all-in-one system

Distributed and Scalable Architecture

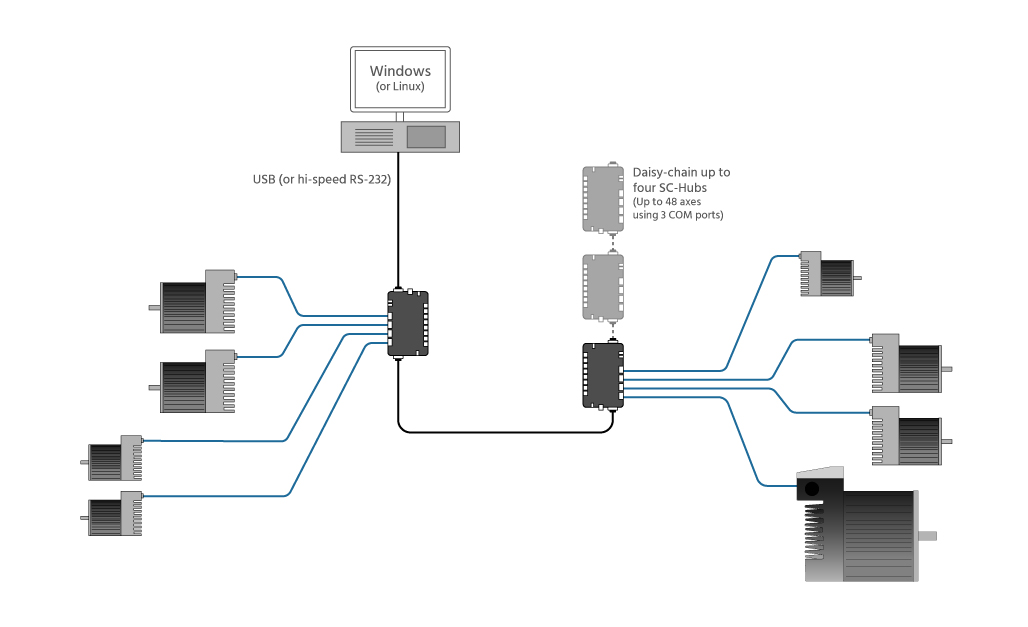

ClearPath SC motor wiring diagram shows distributed, scalable architecture of 48 axes on Windows/Linux

Compare Basic and Advanced
Software Features

FeatureDescriptionBasic Version
(Standard)
Advanced
Version
(Optional)
Jerk-limited
positional moves
Make relative or absolute moves with automatic jerk limiting and jerk-derivative limiting for ultra-smooth motion.
Velocity movesRamp up or down to user-selected velocities and rotate continuously. Programmable settings control acceleration, jerk (rate of change of acceleration), and jerk derivative for ultra-smooth changes in speed.
Flexible homing routinesHome to a limit switch or hardstop (with gentle, torque-limited hardstop detection). User-defined homing routine can be pre-configured and invoked with one line of code.
Read measured position, velocity, torque, and much moreFull access to real-time status of all motion parameters (more than 30 different status indicators).
Safety shutdownsConstant, automatic monitoring of a variety of motor operating conditions, and shutdowns as necessary to prevent motor and/or system damage.
Soft limitsSet software end-of-motion limits to prevent accidental crashes (can be used simultaneously with physical limit switches).
Global torque limitingProgrammable limit on the maximum amount of torque.
Automatic brake
coil control
Automatically engage a third-party fail-safe brake when an axis shuts down or is disabled.
Group shutdownsAutomatically stop all motion axes simultaneously when any axis has a problem. Also, a global stop input allows non-programmatic simultaneous stopping of all axes using a digital input, button, or switch.
Up to 16 axes per
com port
Using low-cost SC Hub boards ($49), create up to 4 "mini-networks" of up to 4 axes each, which can be daisy-chained (distributed or plugged directly into each other without cables) to allow maximum flexibility and minimal wiring.
Robust communicationInnovative hardware and communication design allows high command throughput (over 1,000 commands per second) without using noise-sensitive high-speed circuitry or non-deterministic "crash and retry" protocols. All inputs are optically isolated for even more noise immunity.
Alternative step & direction interfaceClearPath-SC's inputs can be configured to accept step and direction (or quadrature A/B) signals like the ClearPath-SD series. But while running in step & direction mode with the SC series, you can also communicate using your own C++ (or .NET) application software to query status or change parameters.
g-Stop™
anti-vibration
move profiles
Motion profile sculpting based on patented anti-vibration technology. Allows the fastest possible moves without exciting mechanical resonances in the machine. Easy to configure, and robust operation even as mechanics wear over time. See video demonstration.
Triggered movesOne or more axes can be configured to start simultaneously upon command or electronic signal for the most precise synchronization requirements.
Head-tail movesCreate two- or three-part move profiles where the beginning and/or the end of the moves are at a different maximum velocity than the middle part of the moves. This is useful for making fast moves with one or two slower segments (e.g., moving past a camera slowly and then moving to a target quickly, or slowly clamping something at the end of a fast move).
Asymmetric movesCreate move profiles with different acceleration and deceleration limits. Often, because of friction (or gravity), an axis can decelerate faster than it can accelerate, and this feature allows faster moves in these cases.
Trigger events at user-defined positionsGet a notification when an axis reaches a certain position (either after the start or before the end of the move) to allow synchronization with other events or processes.
Positive / Negative torque limitingIndependently limit positive torque and negative torque (typically used in clamping applications).
Conditional torque limitingAutomatically limit torque (positive and/or negative torque) when an axis is in a certain positional zone, or based on an electrical signal, or when a move completes.
Attention generationAutomatically generate interrupts based on user-defined events so that you don't have to constantly poll for them. This creates a more responsive and synchronized system.
Position capturePrecisely capture axis position on-the-fly based on an electronic input.

Modern Object-Oriented Programming

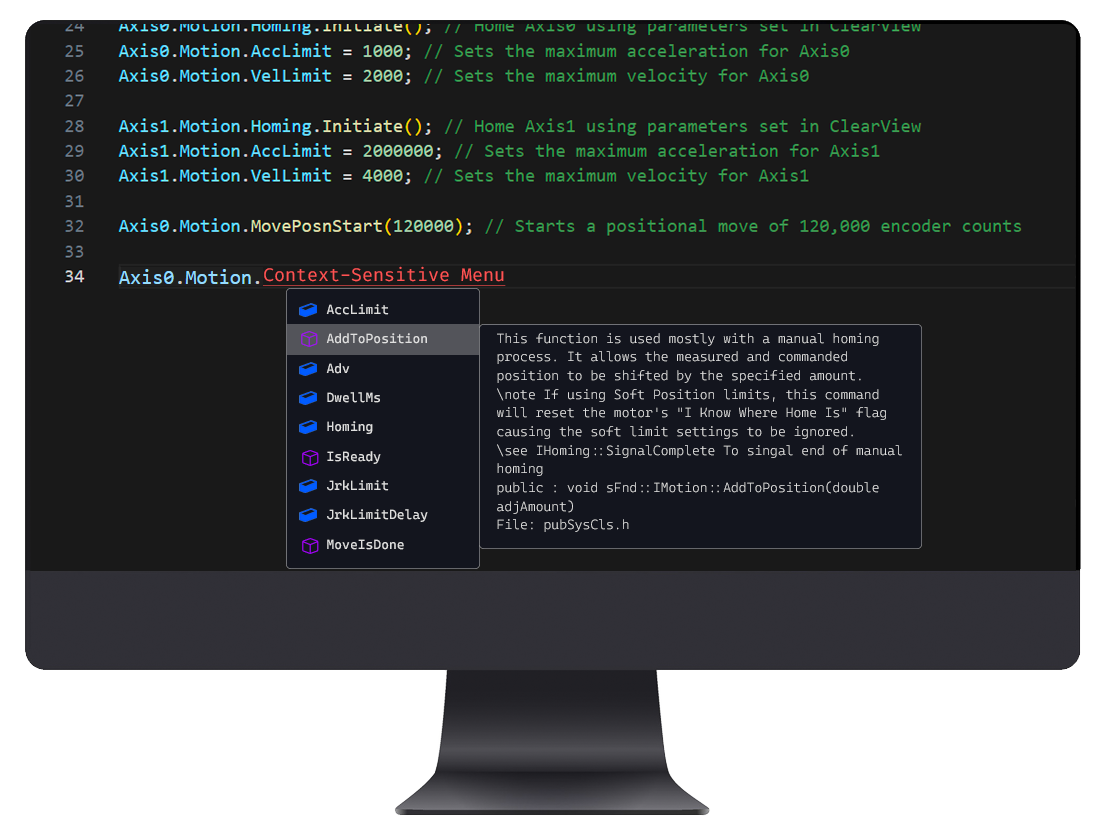

ClearPath SC Motor; C++ modern object-oriented programming example; easy coding with context-sensitive commands and help ClearPath SC Motor; C++ modern object-oriented programming example; easy coding with context-sensitive commands and help

Anti-Resonance Vibration Suppression

ClearPath-SC g-Stop Video

Choose a ClearPath-SC Model

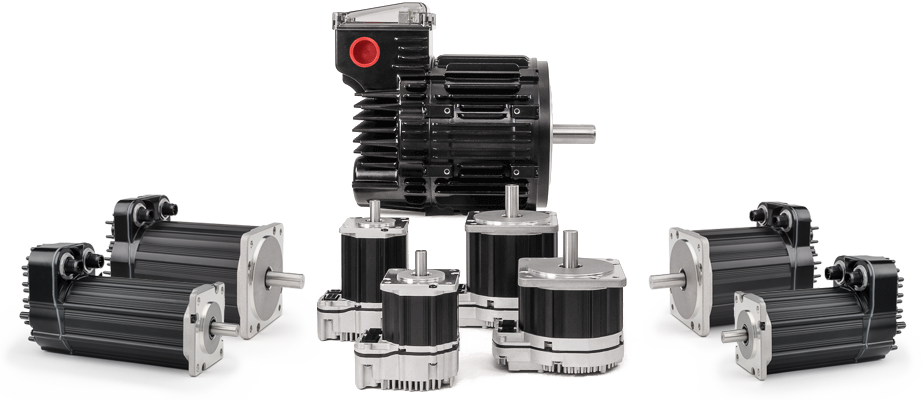

ClearPath Motor Family

Both models share the same state-of-the-art servo performance.
Choose based on power and price.

SCSK "Stepper Killer"
  • 2-3 times the power of similar size steppers
  • Lower power, lowest cost position control
  • 1-Piece: $309 & up
  • 100/year: $261 & up
SCHP High Power
  • 8-15 times the power of similar size steppers
  • High peak power, aggressive duty cycles
  • 1-Piece: $509 & up
  • 100/year: $422 & up

Want help choosing a motor?

Selection Guide
