ClearPath All-in-One Servo Motors

ClearPath integrates all servo components into one compact package:

Motion controller
Brushless, permanent magnet motor
High-resolution encoder
Digital servo drive electronics
3-year warranty

ClearPath integrated servo motors showing a range of NEMA 23 NEMA 34 and NEMA 56 sizes

Choose a Motor Control Series

Compare All
Control Series

ClearPath Motor Selection Guide

If you need help selecting the right ClearPath motor, use this guide to narrow your options in 3 easy steps.

Choose your series, model, and power range
Get a list of relevant specs and pricing
Compare ClearPath models side-by-side

ClearPath Accessories Guide

For help with selecting accessories for your specific ClearPath system, use this walkthrough.

Step-by-step guide to select recommended and optional accessories
Comprehensive overview video for each accessory
Use the interactive accessories schematics to easily purchase the parts you need

ClearPath Motor Specs & Pricing

For engineers that already know their ClearPath series and exact requirements:

See specs and pricing for 1000+ part numbers
Filter by torque, speed, power, voltage, frame size, length, and more
Overlay torque vs. speed curves and compare specs and pricing

ClearPath Part Number Index/Search

If you already know your part number(s), use the index to quickly find:

Pricing and ordering of ClearPath motors or accessories
Specifications (including torque vs. speed curves)
Drawings, manuals, or setup software

Overview

Motor Selection Guide

Hudson BLDC Servo Motors

Teknic's Hudson servo motors are designed to excel in the most demanding OEM applications.

Reduce motor footprint and maximize power output with optimized magnet shape, motor skew, and rotor geometry
Improve machine reliability with a brushless servo motor designed with oversized bearings and class H windings
Increase machine performance with Hudson's high torque density and fast electrical time constant
Buy online, starting at $214
3-year warranty

Product Overview

Specs and Pricing

Meridian Integrated Controllers

Meridian is an integrated motion controller and digital servo drive that is capable of controlling servos, linear motors, and steppers.

Reduce machine vibration and increase throughput with g-Stop™ anti-resonance
Use the Accelerated Prototyping System™ to diagnose performance issues and reduce development time
Improve stepper motor smoothness and increase power output with vector sinewave commutation
Get up and running quickly with the sFoundation source code library
3-year warranty

Product Overview

Eclipse Digital Servo Drives

Eclipse is a state-of-the-art digital brushless servo drive capable of controlling brushed and brushless servo motors.

RAS motion smoothing algorithm reduces move and settling time, noise, and mechanical wear
Teknic's proprietary servo algorithms eliminate overshoot and improve machine performance
Quickset digital oscilloscope and move generator reduce development time
3-year warranty

Product Overview

Motor Brakes

Spring applied power-off (or fail-safe) brakes are used in applications that require the axis to stay in position, even if the machine loses power or is turned off. Brakes are a great option for vertical applications or when additional safety measures are required.

Front mount compatible with any NEMA 23 or NEMA 34 motor frames
24 VDC input for easy actuation
NEMA 23 brakes start at $245
NEMA 34 brakes start at $327
Buy Online; 90-day satisfaction guarantee
3-year warranty

Product Overview

Planetary Gearboxes

Teknic's planetary gearboxes are an effective solution to dramatically increase the torque output of a motor, among other key benefits.

Compatible with any NEMA 17, 23, 34, 56 or 143 motor
Increase motor load handling
Offloads motor bearings, allowing for increased axial/radial loading
Compact design is ideal for space-constrained applications
Buy Online; 90-day satisfaction guarantee

Product Overview

IPC DC Power Supplies

The Amazon™ Intelligent Power Center (IPC) is designed and built specifically for motion control applications.

High output capacitance and built-in regen control system prevents over-voltage shutdowns and the need for external regeneration control and load resistor
High peak power drastically reduces power supply droop during motor acceleration
Buy online, starting at $202
Built in the USA; 3-year warranty

Product Overview

ClearCore I/O and Motion Controllers

ClearCore is a controller platform for industrial I/O and motion control.

Control 4 steppers or digital servos like ClearPath
Analog/digital inputs and outputs; 24V industrial quality
Rich C++ library with dozens of example programs
Ethernet and serial communication
Buy online; 90-day satisfaction guarantee; 3-year warranty

Product Overview

Specs and Pricing

ClearLink EtherNet/IP Motion and I/O Controller

ClearLink is an industrial I/O and motion controller, compatible with any EtherNet/IP scanner.

Control 4 steppers or digital servos like ClearPath
Configurable analog/digital inputs and outputs; 24V industrial quality
Rich EDS file support reduces development time
Add up to an additional 64 digital I/O points
Buy online; 90-day satisfaction guarantee; 3-year warranty

Product Overview

Specs and Pricing

Teknic Legacy Products

Teknic continues to advance the state-of-the-art in servo motion control. As a result, new products are engineered to provide greater performance, reliability, and value. Products that are eventually displaced by the introduction of new technology are not simply discontinued—the components continue to be manufactured and supported for as long as parts are reasonably available.

When products are forced into end of life, Teknic's factory engineers work with customers who desire to extend the life of their legacy machines with newer servo components. Some of Teknic's legacy products were available for nearly 30 years before they moved to end of life status.

Product Overview

Support
Downloads
About

CPM-CABLE-M2P2P-120

24 Volt Power, 2-Pin Molex Cable

Part Number: CPM-CABLE-M2P2P-120
Connectors: 2-pin Molex to 2-pin Molex
Length: 3.05 m (10 ft)

Logic power cable compatible with several Teknic power distribution breakout & accessory boards including the SC4-HUB, POWER4-HUB, POWER4-HUB-S, and the ASU-FR510. This cable can also be used to daisy-chain power between boards or it can be cut to length for flying lead termination at the logic power supply.

2D Drawing

Purchase

Qty 1-9	Qty 10-49	Qty 50-99	Qty 100-199	Qty 200+
$14	Register for Volume Pricing			CONTACT

Quantity

Add to cart

Quantities up to 5 generally ship within 3 business days.

PWR-IO-24VDC

24 VDC Power Supply

Part Number: PWR-IO-24VDC
Output Voltage: 24 VDC
Output Current: 6.5 Amps
Input Voltage: 85-264 VAC, auto-selected
Dimensions: 159x97x30mm (6.26x3.82x1.18 in.)

General purpose, 156 watt, logic power supply; can be used to power ClearCore/ClearLink controllers, SC4-HUB, ASU-FR510 analog controller, or ClearPath servo motors, including those connected via the POWER4-HUB and POWER4-HUB-S.

Protection: Short circuit / Overload / Over-voltage / Over-temperature. Compliance with UL62368-1, EN61558-1/2-16. Operating temperature -25 to 50 deg. C with no derating.

3D Drawings

Purchase

Qty 1-9	Qty 10-49	Qty 50-99	Qty 100-199	Qty 200+
$42	Register for Volume Pricing			CONTACT

Quantity

Add to cart

Quantities up to 5 generally ship within 3 business days.

SC4-HUB

Communication Hub for ClearPath-SC

Part Number: SC4-HUB
Input: 15-30 volts
Connectors: See drawing
Dimensions, in (mm): 3.56 x 5.31 (90.4 x 134.9)

Required for ClearPath-SC systems. Provides network connection for up to four axes. Up to four SC hubs can be daisy-chained to create networks of up to 16 axes (per COM port). Automatic brake control outputs are provided (max of two per daisy-chain). One digital input is provided to stop all axes simultaneously.

3D Drawings

Purchase

Qty 1-9	Qty 10-49	Qty 50-99	Qty 100-199	Qty 200+
$52	Register for Volume Pricing			CONTACT

Quantity

Add to cart

Quantities up to 5 generally ship within 3 business days.

CPM-CABLE-M4P4P-120

I/O Cable, 4-Pin Molex

Part Number: CPM-CABLE-M4P4P-120
Connectors: 4-pin Molex Mini-fit to 4-pin Molex Mini-fit
Length: 10 ft

I/O logic cable compatible with the SC4-HUB distribution board and the Analog Send Unit, ASU-FR510. This cable has 4-pin Molex Mini-Fit connectors on both ends and can be cut to length for flying lead termination at the remote I/O device.

Note: This cable cannot be used to power ClearPath motors.

2D Drawing

Purchase

Qty 1-9	Qty 10-49	Qty 50-99	Qty 100-199	Qty 200+
$15	Register for Volume Pricing			CONTACT

Quantity

Add to cart

Quantities up to 5 generally ship within 3 business days.

CPM-CABLE-CTRL-MU120

Controller Cable, 10 ft

Part Number: CPM-CABLE-CTRL-MU120
Connectors: 8-pin Molex Mini-fit to 8-pin Molex Mini-fit (one connector is overmolded)
Length: 3.05 m (10 ft)

This cable connects your digital control signals (from switches, buttons, PLCs, etc.) to your ClearPath motor. The overmolded Molex connector connects to the motor, and the other end can be plugged into a breakout board (or for ClearPath-SC, the SC communication hub), or cut off to create flying leads to allow you to wire into any control device you may use.

2D Drawing

Purchase

Qty 1-9	Qty 10-49	Qty 50-99	Qty 100-199	Qty 200+
$26	Register for Volume Pricing			CONTACT

Quantity

Add to cart

Quantities up to 5 generally ship within 3 business days.

CPM-CABLE-CTRL-MM660

Controller Cable, 55 ft

Part Number: CPM-CABLE-CTRL-MM660
Connectors: 8-pin Molex Mini-fit to 8-pin Molex Mini-fit
Length: 16.775 m (55 ft)

Cable to connect your digital control signals (from switches, buttons, PLCs, etc.) to your ClearPath motor. The 8-pin Molex connector connects to the motor. This cable can be cut to make two cables with a ClearPath connector on one end and flying leads on the other. Can also be used to connect an SC communication hub board to a ClearPath-SC motor, or an ASU-FR510 Analog Send Unit (analog to digital converter) to ClearPath motors and User I/O.

2D Drawing

Purchase

Qty 1-9	Qty 10-49	Qty 50-99	Qty 100-199	Qty 200+
$120	Register for Volume Pricing			CONTACT

Quantity

Add to cart

Quantities up to 5 generally ship within 3 business days.

BLOWER-1P230V

Blower Kit

Part Number: BLOWER-1P230V
Connectors: Screw Terminal Block
Length: Adds 2.12 in to motor length (see manual/3D models for specifics)
Input Power: Single-phase 190-253 VAC (min/max)
Weight: 2.0 lb

This blower kit (AC powered fan and shroud) provides a significant increase in continuous torque for certain AC-input (integral hp) ClearPath motors. Motor part numbers shown with a “_fan” after them show the increased specifications using this blower. Note that this kit is not IP rated for dust or liquid protection, and needs AC wiring separate from the motor. For wiring and installation instructions, refer to the user manual: AC Input, Integral Horsepower ClearPath Motors.

2D Drawing

3D Drawings

Purchase

Qty 1-9	Qty 10-49	Qty 50-99	Qty 100-199	Qty 200+
$70	Register for Volume Pricing			CONTACT

Quantity

Add to cart

Quantities up to 5 generally ship within 3 business days.

RES-225

Regenerated Energy Shunt

Part Number: RES-225
Connectors: Screw Terminal Block
Dimensions, in: 9.0 x 4.25 x 2.44
Weight: 1.6 lb

The RES-225 is a regenerative energy dissipation unit that is compatible with AC input ClearPaths. Customers can use the RES-225 in applications that experience significant regenerated energy (e.g. vertical axes or those with large inertial loads that decelerate quickly). The Regenerated Energy Shunt will monitor and dissipate your motor's excess regenerated energy output. It provides up to 250W of continuous energy dissipation and up to 7kW peak. For additional information on how the RES-225 works, when to use it, as well as wiring and installation instructions, refer to the user manual: AC Input, Integral Horsepower ClearPath Motors.

2D Drawing

3D Drawings

Purchase

Qty 1-9	Qty 10-49	Qty 50-99	Qty 100-199	Qty 200+
$157	Register for Volume Pricing			CONTACT

Quantity

Add to cart

Quantities up to 5 generally ship within 3 business days.

FOOT-56-14X

Foot Mount Kit

Part Number: FOOT-56-14X
Connectors: Screw Terminal Block
Dimensions, in: 7.79 x 6.75 x 0.834
Weight: 1.6 lb

This optional rigid base for AC-input ClearPath motors allows foot mounting in addition to standard face mounting. For mounting instructions, refer to the AC ClearPath Manual.

2D Drawing

3D Drawings

Purchase

Qty 1-9	Qty 10-49	Qty 50-99	Qty 100-199	Qty 200+
$17	Register for Volume Pricing			CONTACT

Quantity

Add to cart

Quantities up to 5 generally ship within 3 business days.

CPM-CABLE-USB-120AB

USB Cable, SC4-HUB to USB Port

Part Number: CPM-CABLE-USB-120AB
Connectors: USB 2.0 A to B
Length: 3.05 meters (10 ft)

Cable used to connect your host PC to 1) a ClearPath-SC communication hub (e.g., SC4-HUB), or 2) an AC input ClearPath. Note: this cable cannot be used with ClearPath-MC or -SD series models with DC power input; for those, use CPM-CABLE-USB-120 (which has a micro-B connector).

Purchase

Qty 1-9	Qty 10-49	Qty 50-99	Qty 100-199	Qty 200+
$9	Register for Volume Pricing			CONTACT

Quantity

Add to cart

Quantities up to 5 generally ship within 3 business days.

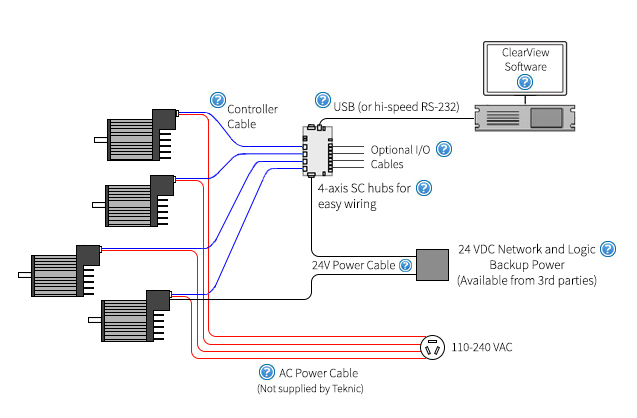

ClearPath-SC Accessories Guide

How to Choose Your Accessories

Logic Backup Power (optional)

This cable connects user-supplied 24VDC logic backup power to the ClearPath motor.
The motor uses a 2-pin Molex Mini-fit connector.

		Learn More & Order
	24 Volt Power, 2-Pin Molex Cable CPM-CABLE-M2P2P-120	Info / Order

Output Power (optional)

For applications that cause significant regenerated energy (e.g., vertical axes, and inertial loads decelerated quickly), the regenerated energy shunt can be used to monitor and manage your motor's regenerative energy. It provides up to 250W of continuous energy dissipation. For additional information on how to operate the RES-225, when to use it, as well as wiring and installation instructions, refer to the user manual: AC Input, Integral Horsepower ClearPath Motors.
The blower kit (AC powered fan and shroud) provides a significant increase in continuous torque for certain AC-input ClearPath motors (ClearPath part numbers with “_Fan” show the increased capability).

		Learn More & Order
	Blower Kit BLOWER-1P230V	Info / Order
	Regnerated Energy Shunt RES-225	Info / Order

Foot Mount (optional)

This optional rigid base for AC-input ClearPath motors allows foot mounting (on one of three sides) in addition to standard face mounting. For mounting instructions, refer to the AC ClearPath Manual.

		Learn More & Order
	Foot Mount Kit FOOT-56-14X	Info / Order

4-Axis SC Hub & Cables

The SC Communications Hub routes all communications signals from your host PC to the ClearPath SC motors and is required for all ClearPath SC systems.
The hub provides network connection for up to 4 axes and 2-4 SC Hubs can be daisy-chained for a network of up to 16 axes (per COM port).
Automatic brake control outputs are provided (max of two per daisy-chain).
One digital input is provided to E-stop all axes simultaneously.

		Learn More & Order
	Communication Hub SC4-HUB	Info / Order
	24 Volt Power, 2-Pin Molex Cable CPM-CABLE-M2P2P-120	Info / Order
	USB Cable, SC4-HUB to USB Port CPM-CABLE-USB-120AB	Info / Order
	I/O Cable, 4-Pin Molex CPM-CABLE-M4P4P-120	Info / Order
	24 VDC Power Supply PWR-IO-24VDC	Info / Order

Controller Cable

This cable carries control signals from the ClearPath-SC Communication Hub (SC4-HUB) to ClearPath SC motor.
The controller cable requires an 8-pin Molex Mini-fit connector on both ends.
The cable can be purchased from Teknic or can be easily made with the proper materials and crimp tools.

		Learn More & Order
	Controller Cable, 10 ft CPM-CABLE-CTRL-MU120	Info / Order
	Controller Cable, 55 ft CPM-CABLE-CTRL-MM660	Info / Order

Planetary Gearboxes

Planetary gearboxes reduce reflected load inertia, amplify motor output torque, isolate axial/radial loading from motor, and improve commanded resolution.
Mechanical compatibility with ClearPath and Hudson servo motors.

		Learn More & Order
	Gearboxes 600+ Models	Info / Order

USB Diagnostic Cable (optional)

USB Setup Cable

Used to run diagnostics on a separate computer without disturbing the normal operation of your application code from the host computer.
Connectors are USB A to B.
This cable can be purchased off the shelf from many third parties, or from Teknic.

		Learn More & Order
	USB Cable CPM-CABLE-USB-120AB	Info / Order

ClearView Software

This setup software is used to manually control and configure ClearPath-SC motors.
ClearView provides simple, but powerful diagnostic tools to measure the performance of your motors and mechanics.
You can download ClearView from Teknic for free.
The ClearView software download also includes the s-Foundation C++ class library. This feature-rich library allows you to create powerful motion control applications with ease.

		Learn More & Download
	ClearView Software CPM-CLEARVIEW	Info / Order

SC Series

AC Input

Watch the Step-by-Step Guide

Next Power Supplies Next My Cart

ClearPath-SC Accessories Guide

Lead Time/Shipping Info

Login

Register
